    ROTALIGN ULTRA II Laser Shaft Alignment System


  • Bluetooth® wireless communication.
  • Large backlit color display.
  • Automatic continuous SWEEP measurement as shaft is rotated.
  • Multipoint and Pass measurement modes.
  • Live Move – simultaneously monitors horizontal and vertical
  • Built-in alignment tolerances.
  • Soft foot measurement and diagnosis.
  • Enter alignment targets and thermal growth values.
  • Alignment of horizontal, vertical and flange-mounted machines.
  • Alignment of coupled, uncoupled and non rotatable shafts.
  • Spacer shaft and cardan shaft functionality (cardan shaft alignment requires additional bracketry).
  • Machine train alignment up to 14 machines.
  • Results table and Standard Deviation to verify measurement accuracy and repeatability.
  • Fixed feet selection – resolves base-bound or bolt-bound problems.
  • InfiniRange® extends detector measurement range to handle any amount of misalignment
  • LIVE TREND machine monitoring functionality (requires additional bracketry).
  • Save reports as PDF directly to a USB stick.

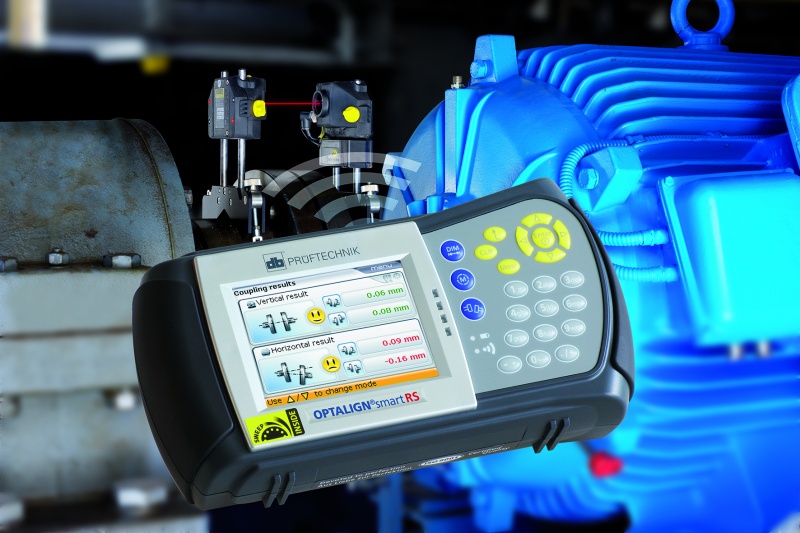

    OPTALIGN SMART RS Laser Shaft Alignment System


  • Bluetooth® wireless communication.
  • Automatic continuous SWEEP measurement as shaft is rotated.
  • Multipoint measurement mode.
  • Live Move – concurrently monitors horizontal and vertical
  • Built-in alignment tolerances.
  • Soft foot check – measure, correct and save results.
  • Enter alignment targets and thermal growth values.
  • Alignment of horizontal, vertical and flange-mounted machines.
  • Alignment of coupled, uncoupled and non rotatable shafts.
  • Spacer shaft functionality.
  • 3-machine train alignment.
  • Results table to verify measurement repeatability.
  • Fixed feet selection – resolves base-bound or bolt-bound problems.
  • InfiniRange® extends detector measurement range to handle any amount of misalignment
  • Save reports as PDF directly to a USB stick.





    SHAFTALIGN OS3 Laser Shaft Alignment System


  • Bluetooth® wireless communication.
  • Automatic continuous SWEEP measurement as shaft is rotated.
  • Multipoint measurement mode.
  • Live Move – concurrently monitors horizontal and vertical
  • Built-in alignment tolerances.
  • Soft foot check – measure, correct and save results.
  • Enter alignment targets and thermal growth values.
  • Alignment of horizontal, vertical and flange-mounted machines.
  • Alignment of coupled, uncoupled and non rotatable shafts.
  • Spacer shaft functionality.
  • Results table to verify measurement repeatability.
  • Fixed feet selection – resolves base-bound or bolt-bound problems.
  • InfiniRange® extends detector measurement range to handle any amount of misalignment
  • Save reports as PDF directly to a USB stick.
Note: SHAFTALIGN OS3 sensor is compatible with External link opens in new tab or windowTABALIGN App.





Laser Pulley/Belt Alignment Tools









 External link opens in new tab or windowVibration Analyzers, External link opens in new tab or windowField Balancers and External link opens in new tab or windowTorque Multipliers also available.
